Aluminum Vise Connectors & Aluminum Vise Clamps
(Aluminum Vise Connectors & Aluminum Vise Clamps)
Product Description

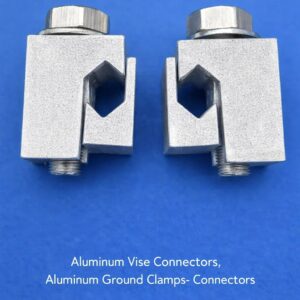

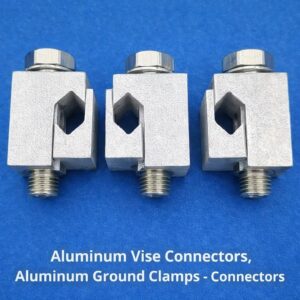

Aluminum Vise Connectors are mechanical, solderless connectors designed for grounding and bonding applications. These connectors use a vise-type, screw-driven clamping mechanism that securely accepts two conductors within the specified range, in any combination.
Manufactured using high-pressure Die Casting (DGC) of Aluminum followed by precision CNC machining, these connectors provide consistent dimensions, strong mechanical grip, and reliable electrical continuity for utility and industrial grounding systems.
Key Design & Performance Features
- Accepts two conductors within the listed conductor range, in any combination
- Vise-type clamping action for secure, vibration-resistant connections
- Side-opening, one-piece design for easy installation and reduced loose parts
- Wide conductor range reduces inventory and SKU count
- Suitable for grounding and bonding of structures, cabinets, enclosures, and equipment
- Aluminum construction offers excellent strength-to-weight ratio and corrosion resistance
- Designed for field installation using standard tools, including gloved handling
Manufacturing Process
- Primary Process: Aluminum Die Casting (DGC)
- Secondary Process: CNC Machining (critical dimensions, conductor grooves, threads)
- Hardware: Stainless steel or plated steel (as specified)
- Finish: As-cast or customer-specified surface treatment
Typical Applications
- Grounding and bonding taps
- Cabinet and enclosure grounding
- Equipment bonding connections
- Utility grounding systems
- Industrial earthing grids
- Telecom and infrastructure grounding
Standard Sizes & Dimensions
(Based on referenced industry geometry – Aluminum version)
Note: All connectors accept two conductors within the stated conductor range, in any combination.
Conductor Range (All Variants)
- 8 SOL – 1/0 STR
Aluminum Vise Connector – Size Table
|
Catalog Code |
Conductor Range |
Bolt Thread Size |
Bolt Hex Size |
A (in) |
B (in) |
C (in) |
D (Thread) |
Std. Pack |
|
AVC-207 |
8 SOL – 1/0 STR |
5/16″ |
9/16″ |
1.02 |
0.77 |
2.00 |
1/2″-13 |
100 |
|
AVC-207-FT |
8 SOL – 1/0 STR |
5/16″ |
9/16″ |
1.02 |
0.77 |
1.50 |
1/2″-13 |
100 |
|
AVC-207-IT |
8 SOL – 1/0 STR |
5/16″ |
9/16″ |
1.02 |
0.77 |
2.00 |
3/8″-16 |
100 |
|
AVC-207-ST |
8 SOL – 1/0 STR |
5/16″ |
9/16″ |
1.02 |
0.77 |
1.75 |
1/2″-13 |
100 |
Material & Construction
- Body / Jaws: Die-cast Aluminum alloy
- Clamping Mechanism: Screw-driven vise action
- Threads & Critical Faces: CNC machined
- Hardware: Stainless steel 304/316 Bolts/Washers
Quality & Inspection
- Dimensional verification after CNC machining
- Thread and fit inspection
- Visual inspection for casting integrity
- Controlled packaging to prevent transit damage
Notes
- Dimensions and conductor ranges can be customized on request
- Special threads, coatings, or pack quantities available
Aluminum Vise Connectors are intended for grounding and bonding applications only, unless otherwise specified
