Bronze Machined Castings | CNC Machined Bronze Castings – Precision Engineered Components
High-Quality Bronze Casting Machining Services for Industrial Applications
We are one of the leading manufacturers and exporters of Bronze Machined Castings and CNC Machined Bronze Castings from India. We have been supplying precision-engineered Bronze components to the world market for many decades. Our state-of-the-art manufacturing facility specializes in producing complex Bronze castings that undergo rigorous CNC machining processes to achieve exceptional dimensional accuracy and superior surface finishes. With over three decades of global exposure, our engineering team combines traditional metallurgical expertise with advanced computer numerical control technology to deliver Bronze Machined Castings that meet the most demanding specifications across automotive, electrical, marine, and industrial sectors. Our comprehensive range includes Aluminum Bronze, Silicon Bronze, Leaded Bronze, and specialty alloys like C83600 Gunmetal, all processed through precision machining centers to create components ranging from electrical connectors to transformer hardware. We maintain strict adherence to international quality standards including ASTM, BS, DIN, JIS, and IS specifications while offering customized solutions with flexible production schedules and competitive turnaround times of 4-6 weeks for standard orders.

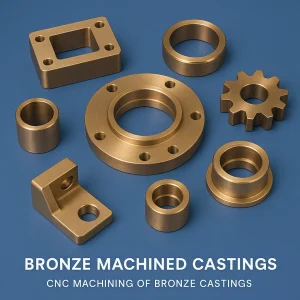

Bronze Machined Castings: Engineering Excellence in Traditional Metallurgy
Bronze Machined Castings represent the perfect marriage between time-tested casting techniques and modern precision machining capabilities. Our foundry produces raw Bronze castings using sand casting, investment casting, and centrifugal casting methods, which are then transferred to our CNC machining department for final dimensional refinement. The inherent properties of Bronze alloys—including excellent corrosion resistance, superior wear characteristics, low magnetic permeability, and exceptional machinability—make these castings ideal for bushings, bearings, valve bodies, pump components, and marine hardware. Our machining operations include turning, milling, drilling, boring, threading, and surface grinding to transform rough castings into precision-finished components. The typical surface finish achieved ranges from Ra 1.6 to Ra 0.8 microns depending on application requirements. We work with various Bronze grades including tin Bronze (phosphor Bronze), Aluminum Bronze, Silicon Bronze, and leaded Bronze alloys, each selected for specific mechanical properties and environmental conditions. Our quality control protocols ensure that every machined casting undergoes dimensional inspection using coordinate measuring machines (CMM), hardness testing, and visual examination before dispatch.
CNC Machining of Bronze Castings: Precision Through Advanced Technology
CNC machining of Bronze Castings has revolutionized how we achieve tight tolerances and complex geometries in traditionally cast components. Our facility operates multiple CNC vertical machining centers (VMC), horizontal machining centers (HMC), CNC lathes with live tooling, and multi-axis turning centers that can handle Bronze castings weighing from 50 grams to 500 kilograms. The programmable nature of CNC equipment allows us to maintain tolerances as tight as ±0.025mm on critical dimensions while ensuring repeatability across production batches. Bronze alloys present unique machining characteristics—their chip-breaking properties and relatively soft structure require specific cutting parameters including cutting speeds of 80-120 meters per minute, feed rates optimized to prevent work hardening, and carbide tooling with appropriate rake angles. Our CAM programming team optimizes tool paths to minimize cycle times while maintaining surface integrity. Post-machining operations include deburring, vibratory finishing, and precision cleaning to remove machining residues. The CNC process enables us to machine intricate features such as internal keyways, multiple threaded sections, eccentric bores, and complex contoured surfaces that would be impossible or economically unfeasible with conventional machining methods.
Aluminum Bronze Machined Casting: Strength Meets Corrosion Resistance
Aluminum Bronze Machined Castings offer exceptional mechanical strength combined with outstanding resistance to seawater corrosion and cavitation erosion, making them the preferred choice for marine propulsion systems, offshore equipment, and heavy-duty industrial applications. Our Aluminum Bronze grades include CuAl10Fe5Ni5 (C95800), CuAl10Ni (C95400), and CuAl9Mn2 conforming to ASTM B148, BS 1400 AB1/AB2, and DIN 1705 standards. These alloys contain 9-12% Aluminum with additions of Iron, Nickel, and Manganese to enhance strength and corrosion resistance. The casting process produces near-net shapes that are subsequently CNC machined to achieve final dimensions with typical tolerances of ±0.05mm to ±0.10mm depending on feature size. Aluminum Bronze exhibits tensile strength ranging from 550 to 850 MPa with excellent wear resistance, making machined castings suitable for pump impellers, valve seats, worm gears, ship propellers, and hydraulic components. The machining process requires careful attention to cutting fluid selection and chip evacuation due to the alloy’s tendency to work harden. Our heat treatment capabilities include solution annealing and precipitation hardening to optimize mechanical properties before final machining operations. Surface treatments such as passivation and protective coating application are available to further enhance corrosion resistance in aggressive environments.
Silicon Bronze Machined Casting: Superior Machinability and Aesthetic Appeal
Silicon Bronze Machined Castings combine excellent mechanical properties with superior machinability and attractive golden-brown aesthetics, making them ideal for architectural hardware, marine fittings, sculptures, and electrical components. Our Silicon Bronze compositions typically contain 96% Copper with 3-4% Silicon and small amounts of Manganese and Zinc, conforming to grades like C87300, C87500, C87800 per ASTM B584 and equivalent BS and DIN specifications. The Silicon content provides solid solution strengthening while maintaining excellent corrosion resistance comparable to Copper. These castings machine beautifully with minimal tool wear, producing long continuous chips and excellent surface finishes without the need for aggressive cutting parameters. We employ both horizontal and vertical CNC machining centers equipped with high-speed spindles to process Silicon Bronze castings into precision components including electrical connectors, bolts and nuts for marine applications, pump components, and decorative architectural elements. The alloy’s hot tear resistance during solidification allows for intricate casting designs with thin sections that can subsequently be machined to tight tolerances of ±0.03mm on critical features. Silicon Bronze exhibits tensile strength around 380-520 MPa with elongation of 15-30%, providing adequate strength for most non-structural applications while maintaining excellent formability during secondary operations.
Leaded Bronze Machined Castings: Optimized for High-Speed Machining
Leaded Bronze Machined Castings are specifically engineered for applications requiring extensive machining operations, where the Lead content (typically 1-5%) acts as an internal lubricant and chip breaker, dramatically improving machinability and reducing cycle times. Our Leaded Bronze grades include C83600 (SAE 660), C92200, and C93200 conforming to ASTM B584, BS 1400 LG2, and DIN 1705 standards. The Lead particles distributed throughout the Bronze matrix create discontinuous chips that break easily, preventing bird’s nesting and enabling higher cutting speeds without compromising tool life. These alloys are extensively used for bearing bushings, thrust washers, wear plates, gear blanks, and hydraulic valve components where self-lubricating properties and superior machinability are paramount. Our CNC turning centers achieve remarkably fast production rates on Leaded Bronze parts—cutting speeds can reach 150-200 meters per minute compared to 80-120 for unleaded Bronze alloys. The castings typically exhibit tensile strength of 240-310 MPa with good pressure tightness, making them suitable for medium-duty bearing applications operating up to 260°C. Post-machining operations include precision honing for bearing surfaces and phosphate coating for enhanced wear resistance. It is important to note that while Lead improves machining characteristics, we strictly adhere to environmental regulations regarding Lead-containing alloys and provide material certifications documenting compliance with RoHS directives where applicable.
C83600 LG2 Gunmetal Bronze Castings CNC Machined: The Versatile Workhorse Alloy
C83600 LG2 Gunmetal Bronze Castings CNC Machined components represent one of the most widely specified Bronze alloys in industrial manufacturing due to their balanced combination of castability, machinability, mechanical strength, and corrosion resistance. Also known as Red Brass or Ounce Metal, this alloy contains approximately 85% Copper, 5% Tin, 5% Lead, and 5% Zinc, conforming to ASTM B584 C83600, BS 1400 LG2, DIN 1705 RG5, and JIS H5120 CAC406 specifications. The quaternary composition provides excellent fluidity during casting, producing sound castings with minimal porosity that machine exceptionally well across all operations including turning, milling, drilling, and threading. We produce C83600 machined castings for general engineering applications including valve bodies, pump housings, fittings, flanges, gears, impellers, and marine hardware components weighing from 100 grams to 300 kilograms. The alloy exhibits tensile strength of 240 MPa minimum with 20% elongation and Brinell hardness of 65-75, providing adequate strength for medium-pressure fluid handling systems while maintaining excellent machinability ratings. Our CNC machining operations on LG2 Gunmetal achieve dimensional tolerances of ±0.05mm on major dimensions with positional tolerances down to ±0.025mm on critical features. The natural corrosion resistance makes these components suitable for saltwater applications, although we recommend protective coatings for extreme marine environments. Heat treatment is generally not required for C83600, although stress relieving at 250-300°C may be performed after heavy machining to ensure dimensional stability.
Electrical Bronze Connectors Machined Castings: Precision Components for Power Transmission
Electrical Bronze Connectors Machined Castings are critical components in power distribution systems, providing reliable electrical connections with superior current-carrying capacity and corrosion resistance. Our manufacturing process begins with high-conductivity Bronze alloys such as C86300 Manganese Bronze or Silicon Bronze C87300, which are cast using permanent mold or investment casting techniques to achieve near-net shapes. These castings are subsequently CNC machined to create precision connector geometries including lug profiles, bolt holes, barrel sections, and contact surfaces with tolerances of ±0.02mm on critical electrical interface areas. The Bronze alloys selected for electrical connectors must balance electrical conductivity (typically 15-25% IACS) with mechanical strength sufficient to withstand installation torque and thermal cycling. Machining operations include precision boring to accommodate cable insertion, drilling and tapping for mounting hardware, and surface milling to ensure flat, parallel contact faces. Post-machining treatments include silver plating, tin plating, or nickel plating to reduce contact resistance and provide long-term corrosion protection. Our electrical Bronze connector castings serve applications in switchgear assemblies, busbar connections, transformer terminations, and industrial motor connections rated from 400 amps to 3000 amps continuous current. Each connector undergoes electrical testing to verify contact resistance below specified limits and mechanical pull testing to ensure adequate clamping force. We maintain compliance with IEC 60947, UL 486, and relevant electrical standards for connector design and performance.
Transformer Spade Connectors Machined from Bronze: Specialized Power Distribution Hardware
Transformer Spade Connectors Machined from Bronze are specifically engineered fastening devices used in high-voltage transformer bushing connections, providing secure mechanical attachment combined with excellent electrical conductivity. These specialized connectors are precision-machined from cast Bronze billets or near-net-shape castings using multi-operation CNC machining processes. The typical spade connector features a flat blade section that inserts into the transformer bushing slot, a transition radius to minimize stress concentration, and a barrel or compression section for cable attachment. Our manufacturing process employs Silicon Bronze C87300 or Aluminum Bronze C95400 for their superior strength-to-conductivity ratio, with castings produced to minimize material removal during machining. CNC operations include contour milling to create the precise spade profile, precision hole drilling for mounting bolts, and thread milling for cable compression hardware. Critical dimensions such as blade thickness (typically 6.35mm or 8mm), insertion depth, and hole positioning are held to tolerances of ±0.025mm to ensure proper fitment within transformer bushing assemblies. Surface finish on contact areas is maintained at Ra 0.8 microns or better to minimize contact resistance. The connectors undergo silver plating with thickness of 10-15 microns over a copper flash to provide optimal electrical performance and corrosion protection. Testing protocols include dimensional verification using optical comparators, plating thickness measurement via X-ray fluorescence, and electrical resistance testing. These connectors are supplied with certification documenting material composition, mechanical properties, and electrical performance parameters.
Transformer Tank Ground Connectors Machined from Bronze: Safety-Critical Earthing Components
Transformer Tank Ground Connectors Machined from Bronze serve the vital safety function of providing low-impedance grounding paths for transformer enclosures, ensuring personnel safety and equipment protection during fault conditions. These robust connectors are machined from Aluminum Bronze or Silicon Bronze castings to provide the mechanical strength necessary to withstand fault currents while maintaining excellent electrical conductivity and corrosion resistance over decades of outdoor service. The typical ground connector design incorporates a flat pad section that bolts securely to the transformer tank surface, substantial conductor attachment points capable of accommodating large grounding cables, and sometimes multiple connection positions for grid grounding configurations. Our manufacturing begins with sand casting or investment casting to produce near-net-shape blanks, followed by comprehensive CNC machining including face milling to create flat mounting surfaces within ±0.05mm flatness tolerance, precision drilling and tapping for mounting hardware rated to specific torque values, and machining of cable attachment features such as compression lugs or bolted clamps. Material selection favors Aluminum Bronze C95400 or C95800 for high-current applications due to their combination of 90 MPa yield strength and adequate electrical conductivity. Surface treatment typically involves tin plating or silver plating on contact surfaces to reduce long-term oxidation and maintain low contact resistance throughout the connector’s service life. Each ground connector is marked with rated current capacity, material grade, and traceability codes as required by IEEE and IEC transformer standards. Our ground connectors are designed to accommodate conductor sizes from 35mm² to 500mm² with current ratings from 1000 to 10,000 amperes for short-duration fault conditions.
Material Grades and International Specifications
| Alloy Type | ASTM (USA) | BS (British) | DIN (German) | JIS (Japan) | IS (India) | GB (China) |
|---|---|---|---|---|---|---|
| Gunmetal Bronze | C83600 | LG2 (1400) | RG5 (1705) | CAC406 (H5120) | LTB2 (305) | ZCuSn5Pb5Zn5 |
| Aluminum Bronze | C95800 | AB2 (1400) | G-CuAl10Ni | CAC703 (H5120) | AB2 (305) | ZCuAl10Fe3 |
| Silicon Bronze | C87300 | SCB3 (1400) | G-CuSn5ZnPb | – | SBC (305) | ZCuSn5Zn5Pb5 |
| Phosphor Bronze | C90700 | PB1 (1400) | G-CuSn10 | CAC502 (H5120) | PB1 (305) | ZCuSn10P1 |
| Leaded Bronze | C93200 | LG4 (1400) | G-CuSn7ZnPb | CAC403 (H5120) | HTB3 (305) | ZCuSn10Pb1 |
| Manganese Bronze | C86300 | HCC1 (1400) | G-CuZn25Al5 | – | HTB1 (305) | ZCuZn38Mn2Pb2 |
Manufacturing Process and Machinery Specifications
Our comprehensive Bronze casting and machining facility employs a multi-stage production process beginning with pattern making and mold preparation, proceeding through metal melting and casting, heat treatment where applicable, and culminating in precision CNC machining and finishing operations. The casting department utilizes induction melting furnaces with capacities ranging from 500 kg to 2000 kg, maintaining precise temperature control and alloy chemistry through spectrometric analysis. We employ green sand molding for larger components, shell molding for medium-volume production, and investment casting for complex geometries requiring minimal draft angles and superior surface finish.
Our machining department operates 15 CNC vertical machining centers from manufacturers including DMG Mori, Haas, and Fanuc, with work envelopes ranging from 500x400x400mm to 1200x800x600mm, spindle speeds up to 12,000 RPM, and positioning accuracy of ±0.005mm. The CNC lathe section includes 8 turning centers with bar capacity from 65mm to 200mm diameter, sub-spindles for complete machining in single setup, and driven tool stations for milling and drilling operations. Additionally, we maintain conventional machines including radial drilling machines, surface grinders, cylindrical grinders, and thread rolling equipment to support specialized operations not suited to CNC automation.
Inspection equipment includes three coordinate measuring machines (CMM) with measuring volumes up to 700x1000x600mm and accuracy of 2.5 microns, optical comparators, surface roughness testers, hardness testing equipment (Rockwell and Brinell), and material testing apparatus including tensile testing machines and spectrometers for material verification.
Typical Components Produced and Applications
Bearing Bushings and Sleeve Bearings – Machined from Leaded Bronze or Aluminum Bronze for rotating shaft support in pumps, motors, and industrial gearboxes with bore tolerances of H7 and surface finish Ra 0.8.
Valve Components – Body castings, bonnets, stems, and seats machined from Gunmetal Bronze C83600 for water, steam, and chemical service applications requiring pressure ratings up to PN40.
Pump Components – Impellers, wear rings, casings, and shaft sleeves produced from Aluminum Bronze or Silicon Bronze to resist abrasive slurries and corrosive fluids in mining, chemical processing, and wastewater treatment.
Marine Hardware – Propellers, rudder stocks, seawater strainers, and hull fittings machined from Aluminum Bronze and Silicon Bronze meeting Lloyd’s Register and ABS specifications for marine service.
Electrical Connectors and Terminals – Cable lugs, busbar connectors, grounding hardware, and transformer accessories manufactured to UL, IEC, and IEEE electrical standards with appropriate plating.
Gears and Worm Wheels – Precision-machined Bronze gears for low-speed high-torque applications where quiet operation and wear resistance are critical, including elevator drives and speed reducers.
Instrumentation Components – Pressure gauge components, valve bodies, and sensor housings requiring dimensional stability and corrosion resistance in process control applications.
Standard Dimensional Capabilities and Tolerances
| Feature Type | Standard Tolerance | Precision Tolerance | Surface Finish |
|---|---|---|---|
| External Diameter (Turned) | ±0.05mm | ±0.025mm | Ra 1.6 – Ra 0.8 |
| Internal Diameter (Bored) | ±0.05mm | ±0.025mm | Ra 1.6 – Ra 0.8 |
| Hole Positions | ±0.10mm | ±0.05mm | – |
| Thread Pitch Diameter | 6g tolerance | 5g tolerance | – |
| Flatness (Machined Faces) | 0.05mm/100mm | 0.025mm/100mm | Ra 0.8 – Ra 0.4 |
| Concentricity | 0.05mm TIR | 0.025mm TIR | – |
| Perpendicularity | ±0.05mm | ±0.025mm | – |
| Surface Roughness (Standard) | Ra 3.2 – Ra 1.6 | Ra 0.8 – Ra 0.4 | As specified |
Component Size Range: Minimum casting weight 50 grams, maximum casting weight 500 kilograms. Minimum machined dimension 5mm, maximum machined dimension 800mm. These capabilities accommodate diverse component requirements from precision electrical connectors to large pump housings and valve bodies.
Bronze Material Properties – Technical Data
| Property | C83600 Gunmetal | C95800 Al Bronze | C87300 Si Bronze | C93200 Leaded |
|---|---|---|---|---|
| Tensile Strength | 240 MPa | 650 MPa | 415 MPa | 240 MPa |
| Yield Strength | 130 MPa | 280 MPa | 165 MPa | 125 MPa |
| Elongation | 20% | 12% | 35% | 15% |
| Hardness (Brinell) | 65-75 HB | 150-170 HB | 80-90 HB | 60-70 HB |
| Electrical Conductivity | 15% IACS | 13% IACS | 7% IACS | 12% IACS |
| Thermal Conductivity | 60 W/m·K | 60 W/m·K | 40 W/m·K | 50 W/m·K |
| Coefficient of Expansion | 18.0 x 10⁻⁶/°C | 16.2 x 10⁻⁶/°C | 18.0 x 10⁻⁶/°C | 18.5 x 10⁻⁶/°C |
| Density | 8.75 g/cm³ | 7.65 g/cm³ | 8.75 g/cm³ | 8.90 g/cm³ |
Surface Finishing and Plating Options
Our comprehensive surface treatment capabilities enhance both aesthetic appearance and functional performance of Bronze machined castings. Standard finishes include as-machined condition with tool marks visible, bead blasted finish for uniform matte appearance, vibratory finished for deburred edges and smooth texture, and polished finish achieving mirror-like surfaces where required. Protective plating options include electroless nickel plating (5-25 microns thickness) for wear resistance and uniform coverage of complex geometries, electrolytic nickel plating for enhanced corrosion protection, tin plating (3-10 microns) for electrical applications requiring low contact resistance, silver plating (10-20 microns) for high-conductivity electrical connections, and chromate conversion coating for moderate corrosion protection with minimal dimensional impact. Each plating process follows ASTM B733, ASTM B689, or equivalent international standards with adhesion testing and thickness verification performed on production batches. Specialty treatments include phosphate coating for enhanced wear resistance in bearing applications and clear lacquer coating for architectural components requiring aesthetic preservation while maintaining natural Bronze coloration.
Industries Served and Application Sectors
Marine and Shipbuilding Industry – Propulsion components, seawater handling systems, hull fittings, and deck hardware requiring exceptional corrosion resistance in saltwater environments per maritime classification society standards.
Power Generation and Distribution – Transformer components, electrical connectors, busbar hardware, grounding systems, and switchgear parts for utilities and industrial power systems meeting IEC, IEEE, and UL specifications.
Water and Wastewater Treatment – Pump components, valve bodies, actuator parts, and pipeline fittings handling potable water, sewage, and chemical treatment solutions requiring NSF-61 compliance for drinking water contact.
Oil and Gas Industry – Wellhead components, valve trim, pump parts, and offshore platform hardware operating in corrosive hydrocarbon and brine environments with stringent safety and quality requirements.
Chemical Processing – Process equipment components including pump casings, valve bodies, heat exchanger parts, and instrumentation fittings resistant to various acids, alkalis, and organic solvents.
Automotive and Transportation – Bearing components, electrical connectors, sensor housings, and specialized fasteners for passenger vehicles, commercial trucks, and rail transport applications.
Aerospace Ground Support – Aircraft servicing equipment, fueling system components, and ground power connection hardware meeting aerospace quality standards and traceability requirements.
Mining and Mineral Processing – Slurry pump components, grinding mill parts, and materials handling equipment operating in highly abrasive environments with solid-laden fluids.
Production Lead Time and Delivery Schedule
Our standard production turnaround time for Bronze machined castings is 4 to 6 weeks from purchase order confirmation, encompassing pattern making or tooling verification (5-7 days), casting production and solidification (7-10 days), heat treatment and stress relieving where applicable (2-3 days), CNC machining operations (10-15 days), surface finishing and plating (3-5 days), quality inspection and documentation (2-3 days), and final packaging. Expedited production is available for urgent requirements with 3-week delivery possible for components utilizing existing patterns and standard material grades, though rush charges may apply. For repeat orders with established tooling and approved first article inspection, we can reduce lead time to 3-4 weeks. Large volume production runs exceeding 500 pieces may require extended schedules negotiated at order placement. We maintain transparent communication throughout production, providing weekly progress updates and advance notification of any potential delays. Our production planning accommodates customer delivery schedules, and we can arrange partial shipments for phased project requirements or hold completed inventory for scheduled call-off releases.
Why Choose Our Bronze Machined Castings
Three Decades of Specialized Experience – Our company has continuously refined Bronze casting and machining processes since 1995, accumulating extensive metallurgical knowledge and production expertise that ensures consistent quality and problem-solving capability when challenges arise during complex component manufacturing.
Advanced Engineering Support – Our technical team actively collaborates with customers during design phases, offering design for manufacturability (DFM) analysis, suggesting cost-effective modifications to improve castability and machining efficiency, providing finite element analysis for stress-critical components, and recommending optimal material selection based on service conditions.
Flexible Production Capabilities – Unlike rigid manufacturing operations, we accommodate prototype quantities starting from single pieces, scale efficiently to medium production volumes of 100-1000 pieces, and support large-scale manufacturing exceeding 10,000 annual components while maintaining consistent quality across all volume levels.
Customized Packaging Solutions – We provide tailored packaging addressing specific customer requirements including individual component wrapping in VCI paper for corrosion prevention, custom foam inserts for fragile geometries, branded packaging with customer logos for retail distribution, and specialized export crating meeting international shipping regulations.
Comprehensive Quality Documentation – Each shipment includes material test certificates tracing chemical composition to heat lot, dimensional inspection reports documenting critical features, third-party test results where specified, and complete traceability documentation meeting AS9100, ISO 9001, and customer-specific quality system requirements.
Global Logistics Network – Our experienced export department manages international shipping via air freight for urgent requirements, sea freight for economical volume shipments, customs documentation preparation, and coordination with freight forwarders ensuring on-time delivery to destinations across North America, Europe, Asia-Pacific, and Middle East regions.
Competitive Pricing Structure – Manufacturing in India provides significant cost advantages compared to Western manufacturers while maintaining equivalent quality standards, with transparent pricing free from hidden surcharges, volume discounts for large orders, and fixed pricing agreements available for annual supply contracts.
Responsive Communication – Our customer service team maintains accessibility through multiple channels including email, phone, WhatsApp messaging, and video conferencing, typically responding to inquiries within 24 hours and providing technical clarification in clear, understandable language rather than dismissive jargon.
Technical Question and Answer Session
What dimensional tolerances can be achieved on CNC machined Bronze castings, and how do they compare with other manufacturing methods?
Our CNC machining operations achieve tolerances of ±0.05mm on major features and ±0.025mm on critical dimensions, with ±0.010mm possible through specialized protocols. These tolerances significantly exceed casting alone (±0.5-1.0mm) and approach wrought bar stock machining while providing economic benefits and design flexibility of net-shape casting.
How does the machinability of different Bronze alloys compare, and what factors should be considered when selecting a Bronze grade?
Leaded Bronze exhibits the best machining characteristics allowing 30-50% higher cutting speeds, Silicon Bronze machines well with good surface finish, while Aluminum Bronze requires specialized tooling due to work hardening tendencies. Selection should balance machining ease with service requirements including strength, corrosion resistance, and regulatory compliance regarding Lead content.
What are the typical causes of porosity in Bronze castings, and how does your quality control process identify and reject defective castings?
Porosity results from inadequate degassing, insufficient risering, rapid cooling, moisture contamination, or turbulent metal flow. Our quality control employs spectrometric analysis, visual inspection, radiographic examination (X-ray), ultrasonic testing, and pressure testing to identify defects before machining, ensuring only sound castings reach customers.
Can Bronze machined castings be heat treated to improve mechanical properties, and what processes are applicable?
Aluminum Bronze responds to solution annealing (900-950°C) and tempering (600-650°C) achieving tensile strengths exceeding 850 MPa. Most Bronze alloys benefit from stress-relief annealing at 250-300°C to eliminate residual stresses and improve dimensional stability without significantly altering mechanical properties.
What plating thicknesses are recommended for different electrical and corrosive service applications of Bronze connectors?
Silver plating at 10-15 microns provides optimal conductivity per ASTM B700, tin plating at 5-8 microns offers good solderability per ASTM B545, and nickel plating at 15-25 microns provides robust corrosion barriers. Selection depends on electrical performance requirements, environmental exposure, and cost considerations per IEC 60512 and UL 486 standards.
How do you ensure consistent dimensional accuracy across production batches for close-tolerance features requiring matching assemblies?
Consistency relies on qualified CNC programs proven through first article inspection, standardized fixtures eliminating setup variation, machine tool calibration per ISO 230-2, temperature-controlled environment (20°C ±2°C), and statistical process control (SPC) monitoring key dimensions throughout production with tool wear compensation maintaining size control.
What design features improve castability of Bronze components while maintaining suitability for subsequent CNC machining operations?
Optimal design includes uniform wall thickness (6-12mm), draft angles of 2-5 degrees, generous fillet radii (minimum 3mm), avoidance of deep internal pockets, and incorporation of bosses at machined surfaces. Machining allowance of 2-4mm on critical surfaces provides adequate cleanup material while minimizing cycle times.
How does the corrosion resistance of different Bronze alloys compare in seawater applications, and which grades are specified by maritime societies?
Aluminum Bronze C95800 exhibits superior seawater resistance with corrosion rates below 0.025mm per year, significantly outperforming Silicon Bronze (0.05-0.1mm annually) and Gunmetal. Maritime classification societies including Lloyd’s Register and ABS approve Aluminum Bronze C95800 for propellers and critical underwater fittings requiring exceptional corrosion and cavitation resistance.
What are key differences between machining Bronze castings versus wrought products, and when is each approach more economical?
Castings offer near-net-shape capability for complex geometries economical for quantities exceeding 25-50 pieces, while wrought products provide superior mechanical properties and suit prototypes or simple geometries under 10 pieces. Lead time and tooling investment favor wrought stock for low quantities, while castings excel for complex shapes and moderate-to-high volumes.
What inspection and testing documentation do you provide with Bronze machined castings, and can you accommodate special certification requirements?
Standard documentation includes material test certificates (EN 10204 Type 3.1), dimensional inspection reports, visual inspection certificates, and commercial invoices. Enhanced documentation available includes third-party mechanical testing per ASTM E8, radiographic examination per ASTM E155, pressure test certificates, RoHS compliance, REACH declarations, and traceability supporting AS9100 and IATF 16949 standards.
What causes work-hardening during machining of Bronze components, and how can machining parameters be optimized to minimize this?
Work-hardening occurs from plastic deformation creating dislocation tangles, particularly in Aluminum Bronze. Minimization requires sharp cutting edges, positive rake angles (10-15 degrees), adequate depth of cut (minimum 0.5mm), appropriate cutting speeds (80-120 m/min for Aluminum Bronze), and effective cutting fluid with continuous cutting paths avoiding interrupted cuts.
Can you produce Bronze castings with internal passages or complex internal geometries, and how does this affect machining operations?
We regularly produce Bronze castings with internal passages through sand core placement, enabling weight reduction and functional internal features. Challenges include difficulty establishing tool access, inability to inspect internal surfaces except through boroscope or radiography, and potential for core shift affecting wall thickness requiring careful design with appropriate tolerances (±0.5mm internal).
What are environmental and safety considerations when machining Leaded Bronze alloys, and how do your facilities address these concerns?
Leaded Bronze (1-5% Lead) requires comprehensive controls including enclosed CNC machines with integrated mist collection, HEPA filtration, wet machining operations, operator respiratory protection, air quality monitoring ensuring compliance with occupational exposure limits (50 micrograms/m³), and separate chip collection with recycling through specialized metal reclamation preventing landfill contamination.
How do you handle prototype development and low-volume production runs, and what cost implications should customers expect?
Our flexible approach accommodates single-piece prototypes through investment casting or machined patterns suitable for 5-50 cycles. Prototype lead time spans 2-3 weeks with costs typically 3-5 times higher than high volumes due to tooling amortization across limited quantities. Low-volume production (10-100 pieces) achieves intermediate pricing approximately 1.5-2 times high-volume rates.
What factors influence surface finish quality achievable on machined Bronze surfaces, and how can specifications be optimized?
Surface finish depends on tool geometry, machining parameters, material characteristics, machine rigidity, and cutting fluid effectiveness. Achievable finishes range from Ra 6.3 microns (rough machining) to Ra 0.4 microns (fine finishing). Specifications should match functional requirements—bearing surfaces benefit from Ra 0.8-1.6 microns while general external surfaces accept Ra 3.2-6.3 microns.
Customer Testimonials
James Whitmore, Senior Procurement Engineer, Industrial Pumps Division, Michigan, USA
“We have been sourcing Aluminum Bronze impeller castings from this manufacturer for our corrosive service pump line for over eight years, and the consistency of quality has been remarkable. Their engineering team worked closely with us to optimize the impeller blade geometry for improved castability without compromising hydraulic performance, resulting in a 15% cost reduction compared to our previous supplier. The dimensional accuracy of machined fits and their understanding of the tight tolerances required for dynamic balance have eliminated virtually all field vibration issues we previously experienced. Communication has been exceptional—responses to technical queries typically arrive within 24 hours.”
Sarah Chen, Electrical Engineering Manager, Transformer Manufacturing, Ontario, Canada
“Finding a manufacturer capable of producing our specialized Bronze transformer connectors to electrical industry standards while maintaining competitive pricing proved challenging until we discovered this Indian supplier three years ago..”
Glossary of Technical Terms
Castability – The ease with which a molten metal fills mold cavities, influenced by fluidity, solidification characteristics, and susceptibility to defects.
CNC (Computer Numerical Control) – Automated machine tool control using programmed sequences of machine movements and functions executed by microprocessors.
Dezincification – Selective corrosion process removing Zinc from Bronze alloys leaving porous Copper-rich structure with reduced mechanical strength.
Draft Angle – Taper applied to vertical surfaces in casting patterns facilitating removal from molds without damage, typically 2-5 degrees.
Geometric Dimensioning and Tolerancing (GD&T) – Symbolic language on engineering drawings describing geometry and allowable variation using feature control frames and datum references.
Gunmetal – Traditional Bronze alloy containing Copper, Tin, Zinc, and Lead, named for historical use in cannon manufacturing, modern designation C83600.
Investment Casting – Precision casting process creating ceramic molds around wax patterns that are melted out before pouring metal, enabling complex geometries with excellent surface finish.
Machinability Rating – Comparative assessment of ease of machining, typically referenced to free-machining brass (C36000) assigned 100% with other alloys rated proportionally.
Parting Line – Interface where mold halves meet in casting process, typically exhibiting slight flash requiring removal during finishing operations.
Pressure Tightness – Absence of through-wall porosity or interconnected voids allowing fluid leakage, verified through hydrostatic or pneumatic testing.
Riser – Reservoir of molten metal in casting molds feeding solidification shrinkage to prevent internal voids, removed after casting solidifies.
Total Indicator Runout (TIR) – Maximum variation in surface position relative to datum axis during complete rotation, measured using dial indicator, expressing concentricity.
Work Hardening – Increase in material hardness and strength through plastic deformation, occurring during machining when cutting tools plow rather than shear material.
Related Parts
Bronze bearing bushings CNC machined, precision Bronze valve components, Aluminum Bronze marine castings, Silicon Bronze architectural hardware machined, transformer Bronze electrical connectors, phosphor Bronze bearing machined, marine propeller Bronze casting, Bronze pump impeller CNC machining, electrical Bronze terminals manufactured, Bronze worm gear castings machined, seawater resistant Bronze fittings, Bronze bushing manufacturers India, custom Bronze casting machining, high strength Aluminum Bronze parts, corrosion resistant Bronze components, Bronze instrumentation fittings, Bronze electrical grounding hardware, naval Bronze castings machined, Bronze valve body manufacturers, precision Bronze connector machining, C95800 Aluminum Bronze components, C87300 Silicon Bronze parts, gunmetal Bronze casting suppliers, Bronze sleeve bearing manufacturers, transformer Bronze spade lugs, Bronze tank connectors machined, industrial Bronze casting exporters, Bronze gear blanks CNC machined, marine Bronze hardware suppliers, Bronze flanges and fittings machined.
Packaging and Export Shipping
We provide comprehensive packaging solutions protecting Bronze machined castings during international transit while accommodating customer-specific requirements. Standard packaging employs individual component wrapping in VCI (vapor corrosion inhibitor) paper preventing atmospheric corrosion during extended storage and ocean freight, placement in corrugated cartons with rigid dividers preventing component-to-component contact damage, sealing with moisture-resistant tape, and external labeling including part numbers, quantities, gross weight, and handling instructions (fragile markings, orientation arrows). For delicate geometries or precision-machined surfaces, we provide custom foam inserts precisely contoured to component shape preventing movement and impact damage. Heavier castings are packaged in wooden crates meeting ISPM-15 international phytosanitary standards requiring heat treatment or fumigation, with internal bracing preventing shifting during handling. Export documentation includes commercial invoice, packing list, certificate of origin, material test certificates, inspection reports, and any specialized certifications required by destination country regulations. We coordinate with international freight forwarders managing customs clearance, ocean or air freight booking, cargo insurance, and door-to-door delivery to customer facilities across North America, Europe, Asia, Australia, and Middle East destinations. Shipment tracking information is provided enabling customers to monitor transit progress, and we accommodate specific delivery appointment scheduling for time-sensitive projects. Our branded packaging options include custom printed cartons with customer logos for products destined for retail distribution or end-customer delivery, enhancing professional presentation.
Performance Metrics and Quality Benchmarks
Our Bronze machining operations consistently achieve measurable performance standards including 98.5% on-time delivery rate calculated from original customer-requested dates, 99.2% first-pass dimensional inspection acceptance rate indicating robust process control and operator skill, zero reported field failures attributable to casting defects in the past 24 months demonstrating foundry quality, average machining tolerance capability index (Cpk) of 1.67 for critical dimensions showing centered process performance with adequate margin, customer quality complaints under 0.8% of shipments reflecting overall satisfaction, and 95% repeat customer rate over three-year measurement period indicating relationship strength. Material utilization efficiency averages 72% meaning machined component weight represents 72% of casting weight, with chip recycling recovering 95% of scrap value. Machining cycle time optimization through proven CNC programs and efficient fixturing yields 25% faster production compared to manual programming approaches. Equipment uptime exceeds 92% through preventive maintenance scheduling minimizing unplanned downtime. Our quality management system maintains ISO 9001:2015 certification with successful recertification audits and zero major nonconformities during surveillance audits. Customer satisfaction surveys consistently rate our technical support, communication responsiveness, and problem-solving capability above 4.5 on 5-point scale.
Why Global Manufacturers Trust Our Bronze Casting Expertise
Manufacturing Bronze machined castings requires more than machinery and materials—it demands deep metallurgical understanding accumulated through decades of problem-solving in real-world applications. Our team has resolved countless technical challenges including eliminating porosity in thick-section Aluminum Bronze castings through modified gating design and controlled solidification rates, achieving zero leakage in pressure-containing Bronze valve bodies through optimized molding practice, developing specialized machining strategies for hardened Aluminum Bronze reducing tool consumption by 40%, creating custom fixtures enabling single-setup complete machining of complex Bronze connector geometries improving tolerance control, and designing hybrid casting-fabrication approaches for large Bronze assemblies where monolithic casting would be impractical. This experience translates directly to customer benefits—fewer prototype iterations, faster time-to-market, optimized component designs balancing manufacturability with performance, and confidence that production will proceed without unexpected technical obstacles. Our customer-centric approach extends beyond simply executing purchase orders to active collaboration improving designs, transparent communication about realistic capabilities and limitations, honest pricing without hidden charges discovered at shipment time, and long-term partnership mentality where we succeed by helping customers succeed. Global companies return to us not merely because of competitive pricing, but because they trust our engineering expertise, rely on our consistent quality and delivery performance, and value the responsive service that makes us feel like an extension of their own organizations rather than a distant vendor.
