We are one of the leading manufacturers and exporters of Bolted Stirrup Clamps of Bronze and Stirrup Bail Clamps from Bronze from India. For over three decades, Conex Casting has been supplying premium-grade bronze overhead primary tap clamps to electrical utilities, power transmission companies, and infrastructure contractors worldwide across North America, Europe, Australia, the Middle East, and Asia. Our advanced foundry and machining capabilities allow us to produce bronze stirrup clamps that deliver exceptional conductivity, corrosion resistance, and long-term mechanical integrity for overhead power line tapping applications.
Our Bronze Bolted Stirrup Clamps and Bronze Stirrup Bail Clamps serve critical functions in electrical infrastructure — including overhead primary conductor tapping, ACSR conductor connections, AAC and AAAC conductor terminations, and permanent live-line tapping applications. We manufacture these clamps using high-grade Bronze Alloy (body), Copper-un-plated stirrups, and Bronze alloy or Stainless Steel eyestem, conforming to international standards and ensuring superior performance in high-voltage environments. Our product portfolio covers a comprehensive conductor range from #6 Sol–2/0 Str to 4/0–500 MCM, catering to a wide variety of utility and industrial requirements.
Bronze Bolted Stirrup Clamps & Stirrup Bail Clamps – Product Overview

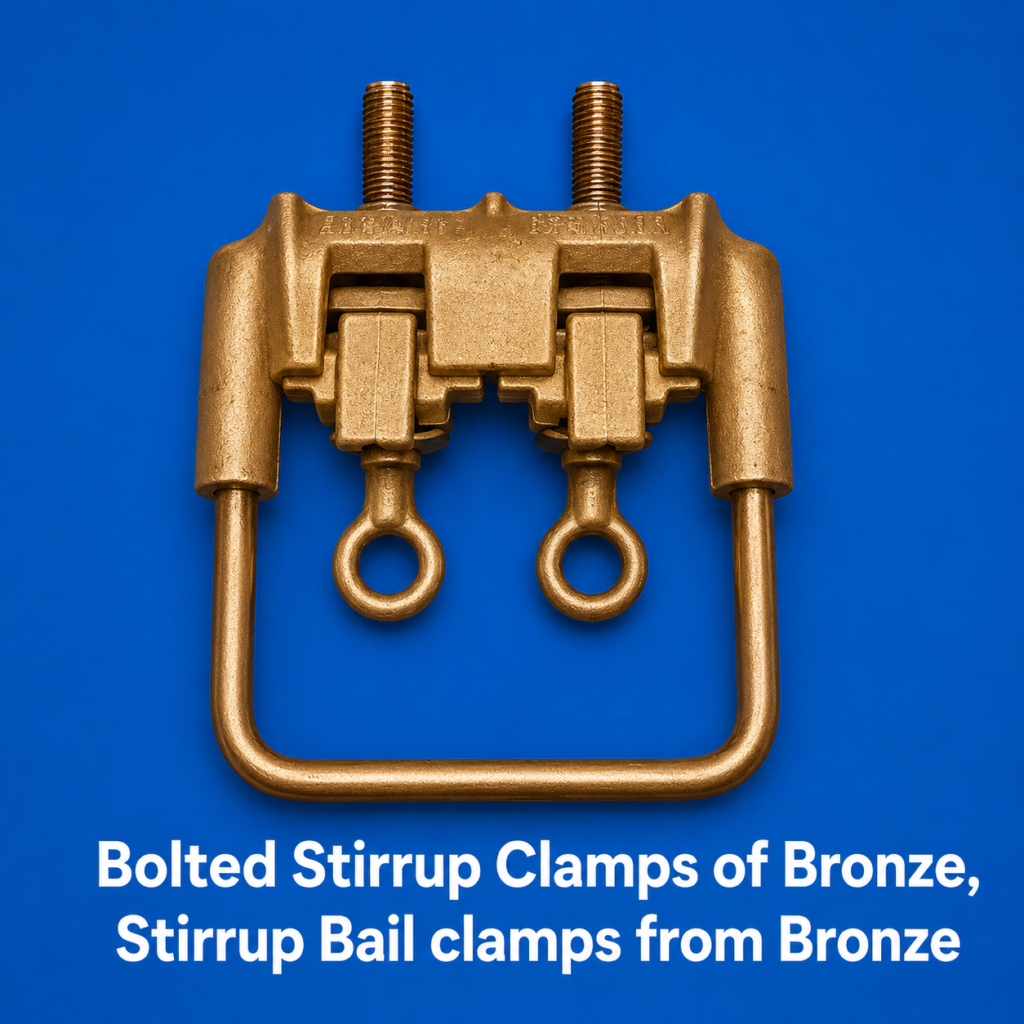

Bolted Stirrup Clamps of Bronze are specially engineered for overhead primary tap applications in medium and high voltage power distribution networks. The eyestem is positioned at a 30° angle from the stirrup, allowing optimal conductor alignment and reducing mechanical stress at the connection point. Available in two eyestem material options — Bronze alloy or Stainless Steel — to suit coastal, industrial, and inland environments. A tin-plated copper loop variant is available upon request (add suffix “TB” to catalog number, e.g., CXB-S022019ETB). Clamps can be supplied factory-inhibited and bagged (add suffix “XB”).
Material Specifications – Bronze Stirrup Clamps
- Body: Bronze Alloy — provides excellent corrosion resistance and high mechanical strength under sustained electrical load
- Stirrup: Copper-un-plated — ensures superior electrical conductivity at the conductor interface
- Eyestem: Bronze alloy or Stainless Steel — selectable based on environmental exposure and utility specification
- Eyestem Angle: 30° from the stirrup body for optimised cable routing
- Optional: Tin-plated copper loop (suffix “TB”); Factory inhibited and bagged (suffix “XB”)
- Thread Treatment: Peened threads to prevent disassembly after installation
Product Data & Conductor Size – Bronze Stirrup Bail Clamps
The table below details the full range of Conex Casting Bronze Stirrup Clamps (Series CXB-S). All dimensional data is provided in Inches with mm in parentheses. Copper Conductor Range is in AWG or MCM. Weight is approximate per 100 lbs (kg).
| Catalog Number | Figure No. | Copper Conductor Range (AWG or MCM) | Copper Loop Size | Bolts No. | Bolt Size | L Inches (mm) | B Inches (mm) | H Inches (mm) | Approx. Wt. 100 Lbs (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| CXB-S022019E | 2 & 3 | #6 Sol–2/0 Str | #4 (.204) | 1 | 3/8 (9.52) | 1-13/16 (46.04) | 2-3/8 (60.32) | 4-3/16 (106.36) | 1.06 (.48) |
| CXB-S022019EB | 2 & 3 | #6 Sol–2/0 Str | #1 (.289) | 1 | 3/8 (9.52) | 1-13/16 (46.04) | 2-3/8 (60.32) | 4-3/16 (106.36) | 1.06 (.48) |
| CXB-S025019E | 1 & 3 | #1 Sol–250 MCM | #1 (.289) | 2 | 3/8 (9.52) | 3-1/2 (88.9) | 4 (101.6) | 4-1/16 (103.19) | 1.71 (.77) |
| CXB-S050022E | 1 & 3 | 4/0–500 MCM | 2/0 (.365) | 2 | 7/16 (11.11) | 3-11/16 (93.66) | 4 (101.6) | 4-3/16 (106.36) | 2.70 (.22) |
Key Features of Conex Casting Bronze Stirrup Clamps
- Superior Bronze Construction: High-grade Bronze alloy body delivers outstanding corrosion resistance in humid, saline, and industrial environments — ideal for coastal substations and exposed overhead line applications
- 30° Eyestem Angle: Factory-set angle reduces mechanical strain on the conductor and simplifies installation on energised overhead primary lines
- Peened Thread Design: Prevents disassembly after installation, ensuring long-term connection integrity and reducing maintenance requirements
- Flexible Eyestem Options: Choose between Bronze alloy eyestem for standard applications or Stainless Steel eyestem for enhanced resistance in highly corrosive environments
- Wide Conductor Range: Covers #6 Sol through 500 MCM copper conductors, making this a versatile single-source solution for most overhead primary tap requirements
- Optional Factory Inhibiting: Clamps can be supplied pre-inhibited and individually bagged for direct installation, reducing site preparation time and improving joint quality
- Tin-Plated Loop Option: For applications requiring enhanced oxidation resistance at the copper loop contact point, the “TB” suffix version is available
- International Standards Compliance: Manufactured to ASTM, IEC, and utility-specific standards; quality tested for electrical continuity, mechanical pull-out strength, and dimensional accuracy
Applications of Bronze Stirrup Bail Clamps
Conex Casting Bronze Stirrup Bail Clamps are engineered for demanding overhead electrical applications, including:
- Overhead primary conductor tap connections in medium voltage (MV) and high voltage (HV) distribution networks
- ACSR, AAC, AAAC, and bare copper conductor tapping on energised overhead lines
- Permanent live-line tapping for service drops and distribution transformer connections
- Substation bus connections and outdoor switchgear terminations
- Power transmission line maintenance, upgrades, and conductor splicing
- Municipal and industrial power distribution infrastructure in harsh environmental conditions
- Overhead line hardware for utilities in coastal, tropical, arid, and industrial zones
Why Choose Conex Casting for Bronze Stirrup Clamps?
Conex Casting is a trusted name in the global electrical hardware market with decades of experience in precision bronze casting. Our state-of-the-art foundry in Mumbai, India, is equipped with advanced metallurgical testing labs, CNC machining centres, and strict quality control systems aligned to international standards. We supply bronze clamps directly to utility companies, EPC contractors, and electrical hardware distributors across 40+ countries.
- ISO-Certified Manufacturing: Our production facility operates under a robust quality management system ensuring every clamp meets dimensional, mechanical, and electrical specifications
- Custom Designs Available: We can engineer bespoke stirrup clamp configurations to meet unique utility specifications — including custom conductor ranges, special alloys, alternate coatings, and branded packaging
- Competitive Lead Times: With large raw material inventory and optimised casting schedules, we offer flexible lead times including expedited production for urgent project requirements
- No Minimum Order Quantity Penalty: We support small trial orders alongside large bulk supply contracts, making it easy for new customers to evaluate our quality
- Export Expertise: Experienced in export documentation, country-specific certifications, and international logistics for seamless delivery to your project site or warehouse
Frequently Asked Questions – Bronze Stirrup Clamps
What is the difference between a Bolted Stirrup Clamp and a Stirrup Bail Clamp?
A Bolted Stirrup Clamp uses one or more bolts to mechanically secure the stirrup around the main conductor and the tap conductor, providing a high-force, vibration-resistant connection. A Stirrup Bail Clamp (also called a Stirrup Bail or Eyebolt Stirrup) incorporates a bail or eyestem as the connecting element, allowing a looped or eyebolt connection to a secondary line or service drop. Both types are manufactured by Conex Casting in Bronze for enhanced corrosion performance.
Are your Bronze Stirrup Clamps suitable for live-line installation?
Yes. Our Bronze Bolted Stirrup Clamps are designed for use in live-line hot-stick installation procedures commonly employed by electrical utilities for overhead primary tap connections. The factory-inhibited and bagged option (suffix “XB”) further facilitates safe, clean, and efficient live-line installation.
What conductor types are compatible with your Bronze Stirrup Clamps?
Our Bronze Stirrup Clamps are designed for copper conductors ranging from #6 Solid to 500 MCM, covering both stranded and solid formats. They are suitable for use with ACSR (Aluminium Conductor Steel Reinforced), AAC (All Aluminium Conductor), AAAC (All Aluminium Alloy Conductor), and bare copper overhead primary conductors.
Can I get Bronze Stirrup Clamps with custom catalog numbers or markings?
Yes. Conex Casting can supply bronze stirrup clamps with custom part numbers, utility-specific markings, or OEM branding upon request. Please contact our sales team with your specifications and we will provide a tailored quotation within 24 hours.
Request a Quote for Bronze Bolted Stirrup Clamps
Ready to source high-quality Bolted Stirrup Clamps of Bronze and Stirrup Bail Clamps from Bronze for your next power distribution project? Conex Casting offers competitive pricing, fast turnaround, and expert technical support. Fill out our quick enquiry form or contact us directly — our team will respond within 24 hours with a detailed quotation, product datasheets, and material certifications.
